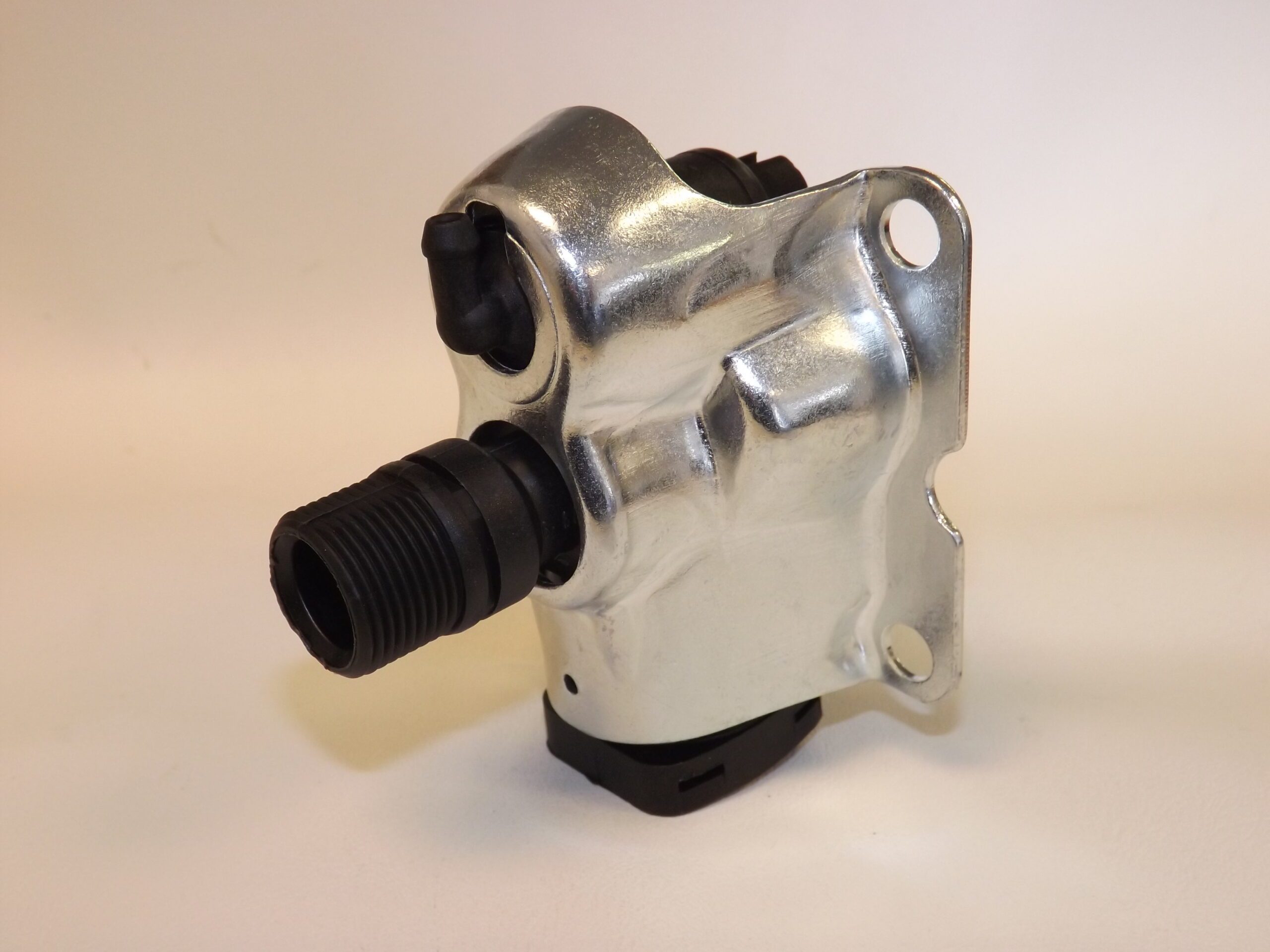

90020110 Control Head 22mm OD complete for Karcher residential electric powered K5 X-Series pressure washers.
Parts Include:
90020280 x1 Pressure Valve & Detergent Inlet Assembly
90020170 x1 Nozzle Insert (Venturi)
no # given x1 Metal Cover
no # given x1 Check Valve
no # given x1 Outer Rubber Ring
no # given x1 Main Control Head body/housing
Models:
K 3.00 ECO SILENT *EU 1.636-800.0, 1636-8000, 16368000;
K 3.200 (50Hz)*JP 1.637-303.0, 1637-3030, 16373030;
K 3.200 (60Hz)*JP 1.637-304.0, 1637-3040, 16373040;
K 3.200 *KR 1.637-305.0, 1637-3050, 16373050;
K 4.00 ECO SILENT *EU 1.636-830.0, 1636-8300, 16368300;
K 4.00 ECO SILENT *CH 1.636-831.0, 1636-8310, 16368310;
K 4.00 (50Hz) *JP 1.636-801.0, 1636-8010, 16368010;
K 4.00 (60Hz) *JP 1.636-802.0, 1636-8020, 16368020;
K 4.200 *EU 1.637-400.0, 1637-4000, 16374000;
K 4.200 *CH 1.637-402.0, 1637-4020, 16374020;
K 4.200 *CN 1.637-404.0, 1637-4040, 16374040;
K 4.200 T250 *GB 1.637-401.0, 1637-4010, 16374010;
K 4.200 T250 *EU 1.637-403.0, 1637-4030, 16374030;
K 4.44 WaterCooled *EU 1.636-870.0, 1636-8700, 16368700;
K 4.44 WaterCooled T250*EU 1.636-871.0, 1636-8710, 16368710;
K 4.500 *EU 1.180-500.0, 1180-5000, 11805000;
K 4.500 T250 *EU 1.180-501.0, 1180-5010, 11805010;
K 4.500 *EU 1.180-502.0, 1180-5020, 11805020;
K 4.600 *EU 1.180-600.0, 1180-6000, 11806000;
K 4.600-T250 *EU 1.180-601.0, 1180-6010, 11806010;
K 4.600 *GB 1.180-602.0, 1180-6020, 11806020;
K 4.600 T250 *GB 1.180-603.0, 1180-6030, 11806030;
K 4.600 T250 *CH 1.180-605.0, 1180-6050, 11806050;
K 4.600 RWB *CH 1.180-606.0, 1180-6060, 11806060;
K 4.600 *CH 1.180-607.0, 1180-6070, 11806070;
K 4.600 *CN 1.180-609.0, 1180-6090, 11806090;
K 4.600 T200 Argos *GB 1.180-614.0, 1180-6140, 11806140;
K 4.620 T250 *EU 1.180-604.0, 1180-6040, 11806040;
K 4.640 *EU 1.180-612.0, 1180-6120, 11806120;
K 4.650 *AU 1.180-608.0, 1180-6080, 11806080;
K 4.650 JUBILEE T250 *EU 1.180-610.0, 1180-6100, 11806100;
K 4.650 Jubilee T250 *CH 1.180-613.0, 1180-6130, 11806130;
K 4.700 *EU 1.180-700.0, 1180-7000, 11807000;
K 5.540 CEM 1.603-320.0, 1603-3200, 16033200;
K 5.540 KTC 1.603-350.0, 1603-3500, 16033500;
K 5.650 *AU 1.180-701.0, 1180-7010, 11807010;
K 5.670 *AU 1.180-702.0, 1180-7020, 11807020;
K 5.690 PS40 *AU 1.180-703.0, 1180-7030, 11807030;
K 5.740 CEM 1.603-300.0, 1603-3000, 16033000;
K 5.740 KTC 1.603-370.0, 1603-3700, 16033700;
